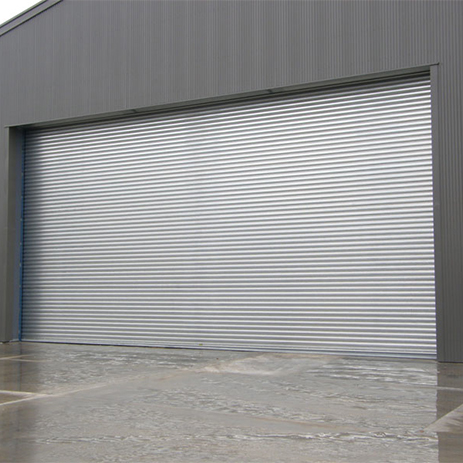

Non Fire Rated Roller Shutters (G.I/Aluminium)
Steel /Aluminum Rolling Shutters
We offer our traditional range of steel/Aluminum rolling shutter of various thickness to suit all applications with manual and electrical operation.
Operation
Manual Push Up Operation
Designed for all applications with maximum recommended size of 3000 mm wide x 3000 mm high. These can be face fitted or fitted within the opening and use a 100 mm flat faced lath.
Manually operated by means of lifting handles on the bottom rail
Standard locking is by shoot bolts to take customer supplied padlocks.
Hand Chain Operation
Designed for all applications with a maximum recommended size of 4000mm wide x 4000mm high these can be face fitted or fitted within the opening and use a 100 mm flat lath.
- Description
Description
Electric Operation
Our electric steel/Aluminum rolling shutter is manufactured to the same high standard as our hand chain operated rolling shutter and is available for openings up to 10000 mm wide x 6000 mm high. (Larger openings can be accommodated)
Standard operation is by a Single Phase or 3 motor with low level push button control.
Control Options :
- Induction Loop
- Radio Control
- Radar (Motion Sensor)
- Card Reader
Finish
Standard powder coated finish (Any non-metallic RAL color)
Design options available as below :
- Perforated lath
- Punched lath
- Cylinder key operated lock to bottom rail
- Slide locks
- Galvanized sheet steel hoods and/or fascias
Safety Options Available
- Photo Cell safety beam
- Safety Edge
Maintenance
- All our shutters are built to last but periodic maintenance will ensure a long life and trouble free operation.
- Maintenance agreements can be arranged with our Service Department.
Steel Models : 1 mm ,1.2 mm & 1.5 mm thick plain slats available
Aluminum Models : 1 mm plain & 1.27 mm Extruded (Model : TS 75)
